Technology innovation ntawm integrated systems
Kev Txhaum Pwm - Qhov Tseem Ceeb Ntawm Qhov Tsis Zoo ntawm Kev Cai Facades
Cov hnab ntawv hauv tsev ib txwm muaj, tshwj xeeb yog cov neeg ua haujlwm Sab Nraud Rwb Thaiv Tsev Ua Haujlwm (EIFS lossis ETICS), raug txwv los ntawm ib puas xyoo- qub tsim lub tswv yim: "layered application" thiab "on-site mechanical fixing." Rwb thaiv tsev boards yog adhered rau phab ntsa nrog mortar thiab ces redundantly ruaj nrog ntau hlau los yog yas mechanical anchors (ties).
Thermal Bridging
Txhua lub thauj tog rau nkoj nkag mus rau lub rwb thaiv tsev txheej ua raws li ib tug microscopic "zog zog." Lub siab thermal conductivity ntawm cov khoom siv hlau tso cai rau cov cua sov hauv tsev kom khiav tawm sai thaum lub caij ntuj no thiab sab nraum zoov cua sov kom nkag tau yooj yim rau lub caij ntuj sov. Kev tshawb fawb qhia tau hais tias cov cua kub hauv zos ntawm cov ntsiab lus thauj tog rau nkoj yog ntau pua lub sij hawm ntau dua nyob rau hauv ib puag ncig, degrading cov phab ntsa tag nrho cov theoretical thermal kev ua tau zoo txog li 20-30%, ua rau nws "tsis pom lub zog funnel."
Dej & Moisture Management Failure
Thauj tog rau nkoj laum qhov cuam tshuam qhov txuas ntxiv ntawm cov txheej txheem rwb thaiv tsev, tsim kom muaj txoj hauv kev zoo tshaj plaws rau cov dej nkag. Cua-tsav dej los nag nkag mus rau hauv lub nkoj thauj tog rau nkoj, ua rau hauv qab lub rwb thaiv tsev lossis nruab nrab ntawm cov pob qij txha. Qhov no ua rau kev puas tsuaj ntawm cov rwb thaiv tsev mus tas li (dej ua kom sov 25 npaug zoo dua li cov rwb thaiv tsev qhuav), khov -thaw kev puas tsuaj, pwm loj hlob, thiab cov txheej txheem sab hauv corrosion. Kev cia siab rau kev tshaj tawm - daim ntawv thov sealants yog qhov kev ntsuas nres, vim tias lawv lub voj voog kev laus luv luv dua li lub tsev lub neej.
Systemic & Durability Risks
Cov ntaub ntawv sib txawv (piv txwv li, EPS board vs. hlau thauj tog rau nkoj, polymer puag lub tsho) muaj qhov sib txawv ntawm cov thermal expansion, elastic moduli, thiab cov yam ntxwv nkag. Nyob rau hauv qhov kub thiab txias ntawm cov qauv micro- txav, lawv tsim cov shear txuas ntxiv thiab tensile stresses ntawm lawv cov interfaces, thaum kawg ua rau rwb thaiv tsev board compression deformation, tawg ncig anchors, nplaum tsis ua hauj lwm, thiab txawm tag nrho -scale detachment. Tsis tas li ntawd, ntawm - qhov chaw tsim kho zoo yog cuam tshuam los ntawm cov neeg ua haujlwm txawj thiab cov huab cua, uas ua rau muaj kev hloov pauv siab thiab zais qhov tsis xws luag uas nyuaj rau kev txheeb xyuas meej.
Main Feature
●Peb yog tus thawj coj thoob ntiaj teb hauv kev sib koom ua ke ntawm kev rwb thaiv tsev- cov kab ke.

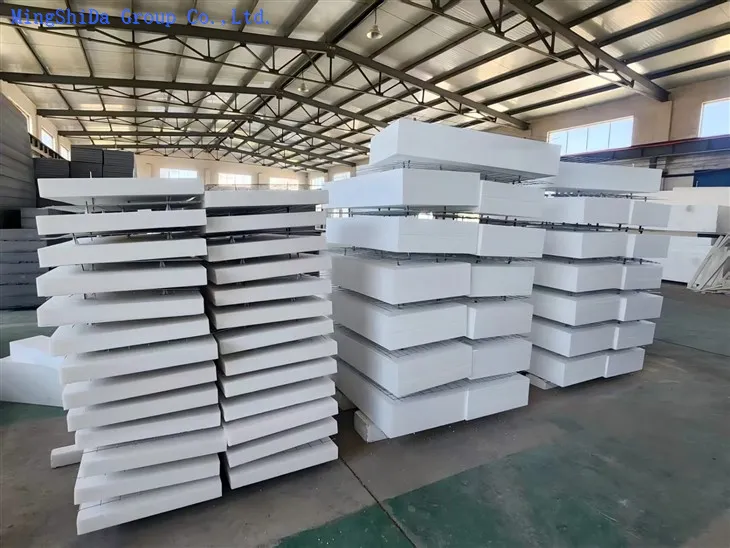

●Peb cov khoom yog prefabricated tag nrho nyob rau hauv factories thiab ntsia sai sai rau ntawm - site zoo li lub tsev blocks.
● Peb daws txhua yam teeb meem ntawm facades: thermal txuas hniav, xau, thiab detachment.
● Lub kaw lus txuag tau txog li 40% lub zog thiab kav ntev dua 50 xyoo.
● Peb muab cov kev daws teeb meem ntsuab tiav rau cov vaj tsev nyob, kev lag luam, thiab cov vaj tsev pej xeem.
Daim ntawv thov Range
● Peb cov txheej txheem rwb thaiv tsev sib xyaw tsim nyog rau siab -cov tsev nyob, kev lag luam, thiab pej xeem cov tsev nyob thoob plaws txhua qhov chaw huab cua thoob ntiaj teb.
●Nws yog qhov zoo tshwj xeeb tshaj yog- haum rau kev rov kho cov chaw pej xeem xws li tsev kho mob thiab tsev kawm ntawv uas yuav tsum tau ua kom nruj rau ib puag ncig sab hauv tsev.
●Lub kaw lus muab kev tiv thaiv hluav taws zoo thiab lub zog-txuag cov txiaj ntsig hauv cov tsev tshwj xeeb xws li cov nroj tsuag thiab cov chaw khaws ntaub ntawv.
●Nws ua tau raws li cov kev cai ntawm cov ntawv pov thawj lub tsev ntsuab loj thoob ntiaj teb, suav nrog LEED thiab Passive House cov qauv.
●Lub kaw lus siv tau rau ob qho kev tsim kho tshiab thiab dav siv rau lub zog -txuag retrofits thiab facade renovation ntawm cov tsev uas twb muaj lawm.
Integrated Rwb thaiv tsev -Structure System Technical Performance Data Sheet
Thermal Performance
| Kev ua tau zoo Parameter | 测试标准 Test Standard | 技术指标 Technical Specification | 单位 Unit |
|---|---|---|---|
| 传热系数 Thermal Transmittance (K-tus nqi) | EN ISO 6946 / ASTM C1363 Kev Tswj Xyuas Kev Nyab Xeeb | Tsawg dua los yog sib npaug li 0.15 | W/(m²·K) |
| 线性热桥系数 Linear Thermal Choj Coefficient (Ψ-tus nqi) | EN ISO 10211 Kev Tswj Xyuas Kev Nyab Xeeb | Tsawg dua los yog sib npaug li 0.01 | W/(m·K) |
| 点热桥系数 Point Thermal Choj Coefficient (χ-tus nqi) | EN ISO 10211 Kev Tswj Xyuas Kev Nyab Xeeb | Tsawg dua los yog sib npaug li 0.005 | W/K |
| 导热系数 Thermal Conductivity (λ-tus nqi) | TS EN 12667 / ASTM C518 | Tsawg dua lossis sib npaug li 0.020 | W/(m·K) |
| 热阻 Thermal Resistance (R-tus nqi) | TS EN 12667 | Ntau dua lossis sib npaug rau 5.0 | m²·K/W |
| 红外热成像温差 Infrared Thermography Temperature Sib txawv | TS EN 13187 | Tsawg dua los yog sib npaug rau 1.0 | degree |
防火性能 Fire Performance
| Kev ua tau zoo Parameter | 测试标准 Test Standard | 技术指标 Technical Specification | 等级/结果 Class/Result |
|---|---|---|---|
| 燃烧性能分级 Fire Classification | TS EN 13501-1 | A2-s1, d0 | A 级不燃 Class A Tsis yog{0}}combustible |
| 耐火极限 Fire Resistance | TS EN 1364-1 / ASTM E119 | 120 | 分钟 feeb |
| 背火面温升 Temperature Rise (Unexposed Surface) | TS EN 1363-1 | Tsawg dua los yog sib npaug li 140 | degree |
| 烟气毒性 Smoke Toxicity | TS EN 13823 | AQ1 | 准安全级 Quasi-Safe Level |
| Nplaim Spread Index | ASTM E 84 | Tsawg dua los yog sib npaug li 15 | - |
| Daim Ntawv Qhia Txog Kev Ntsuas Hluav Taws Xob | ASTM E 84 | Tsawg dua los yog sib npaug li 50 | - |
结构性能 Structure Performance
| Kev ua tau zoo Parameter | 测试标准 Test Standard | 技术指标 Technical Specification | 单位 Unit |
|---|---|---|---|
| 抗风压性能 Cua Load Resistance | TS EN 12179 / ASTM E330 | Ntau dua lossis sib npaug li 5000 | Pa |
| 抗震性能 Seismic Performance | EN 1998-1 / IBC 2018 | Dhau 8-degree tsis tshua muaj av qeeg sim | - |
| 抗冲击性能 Impact Resistance | EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / EN 12600 / ASTM D4226 / ASTM D4226 | 50J 无裂纹 50J tsis tawg | 焦耳 Joules |
| 连接安全系数 Connection Safety Factor | ETAG 034 / AC320 | Ntau dua lossis sib npaug rau 4.0 | - |
| 抗拉拔强度 Tensile zog | TS EN 13412 | Ntau dua lossis sib npaug li 6.5 | kN/cov |
| 抗剪强度 Shear Strength | TS EN 12090 | Ntau dua lossis sib npaug li 0.30 | MPa |
防水防潮性能 Waterproofing & Moisture Performance
| Kev ua tau zoo Parameter | 测试标准 Test Standard | 技术指标 Technical Specification | 单位 Unit |
|---|---|---|---|
| 静态水压防水 Static Water Pressure Resistance | TS EN 1928 / ASTM D5385 | Ntau dua lossis sib npaug li 2000 | mmH₂O |
| 接触角 Contact Angle (Dej) | ISO 27448 Kev Tswj Xyuas Kev Lag Luam | Ntau dua lossis sib npaug rau 110 | 度 degrees |
| 吸水率 Dej nqus dej | TS EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / EN 1609 / ASTM C272 / EN 1609 / ASTM C272 / EN 1609 / ASTM C272 | Tsawg dua los yog sib npaug rau 1.0 | % (vol.) |
| Vapor Permeability tuaj yeem hloov kho | TS EN 12086 / ASTM E96 | 0.5-3.0 (ua kom haum) | g/(m²·24h) |
| 抗冷凝性能 Anti-Condensation Performance | ISO 13788 Kev Tswj Xyuas Kev Lag Luam | Tsis muaj condensation txaus ntshai ntawm ΔT Ntau dua lossis sib npaug li 15 degree | - |
| 抗冻融循环 khov-thaw Cycle Resistance | TS EN 12091 | Ntau tshaj lossis sib npaug rau 300 cycles, tsis muaj kev puas tsuaj | 循环 cycles |
耐久性能 Durability Performance
| Kev ua tau zoo Parameter | 测试标准 Test Standard | 技术指标 Technical Specification | 结果 Result |
|---|---|---|---|
| 设计使用寿命 Tsim Kev Pabcuam Lub Neej | TS EN ISO 15686-1 | Ntau tshaj los yog sib npaug rau 50 | 年 xyoo |
| 冻融循环后强度保持率 Lub zog Retention tom qab khov-thaw | TS EN 12091 | Ntau dua lossis sib npaug li 95 | % |
| UV 老化后性能保持率 Performance Retention after UV Aging | TS EN 12467 / ASTM G154 | Ntau dua lossis sib npaug li 95 | % |
| 湿热老化后性能保持率 Performance Retention after Damp Heat Aging | TS EN 14188 | Ntau dua lossis sib npaug li 90 | % |
| 年老化率 Txhua xyoo Aging Rate | TS EN ISO 2440 | Tsawg dua los yog sib npaug rau 1.0 | % / xyoo |
| 尺寸稳定性 Dimensional Stability | EN 1604 (70 degree, 48h) | Tsawg dua los yog sib npaug li 0.5 | % |
环境性能 Environmental Performance
| Kev ua tau zoo Parameter | 测试标准 Test Standard | 技术指标 Technical Specification | 单位/等级 Unit/Class |
|---|---|---|---|
| Formaldehyde Emission yog tsim los ntawm cov khoom siv hluav taws xob | TS EN 717-1 / ASTM D6007 / EN 717-1 | Tsawg dua los yog sib npaug li 0.01 | mg/m³ |
| VOC 总释放量 Total VOC Emission | TS EN ISO 16000-6 / ASTM D5116 | Tsawg dua los yog sib npaug li 0.05 | mg/m³ |
| 可回收率 Recyclability Rate | ISO 14021 Kev Tswj Xyuas Kev Lag Luam | Ntau dua lossis sib npaug li 85 | % |
| 碳排放 (生产阶段) Cov pa roj carbon emission (Production Phase) | ISO 14067 Kev Tswj Xyuas | Tsawg dua los yog sib npaug li 15 | kgCO₂/m² |
| Daim ntawv pov thawj Environmental Certification | - | EPD, GreenGuard, Blue Angel | - |
Kev Ua Haujlwm Zoo
| 认证体系 Certification System | 认证机构 Certifying Body | 证书编号 Certificate Number | 有效期 Validity |
|---|---|---|---|
| ISO 9001: 2015 Kev Tswj Xyuas Zoo | TUV Rheinland | 认证中 tseem tos | 3 xya 3y |
| ISO 14001: 2015 Kev Tswj Xyuas Ib puag ncig | TUV Rheinland | 认证中 tseem tos | 3 xya 3y |
| 中国绿色建材认证 Tuam Tshoj Green Tsev Khoom | CNAS | GBM-2023-001 | 5y5 xya |
|
FAQ insulation board manufacturers
 Q1: Integrated Insulation yog dab tsi -Structure System? Nws txawv li cas los ntawm cov txheej txheem rwb thaiv tsev? A1:Kev sib xyaw ua ke prefabricates cov ntaub ntawv rwb thaiv tsev thiab kev txhawb nqa rau hauv cov qauv ua tiav los ntawm molecular -theem fusion technology hauv lub Hoobkas. Piv rau cov txheej txheem txheej txheem, nws tshem tawm cov teeb meem cuam tshuam, ua tiav xoom thermal txuas hniav, xoom xau, xoom hollowing, thiab txhim kho kev txhim kho kev ua haujlwm los ntawm 3-5 zaug.
Q2: Dab tsi yog qhov system hluav taws kub ua haujlwm? A2:Lub kaw lus ua tiav siv Class A uas tsis yog- cov khoom siv hluav taws xob (EN 13501-}1 A2-s1, d0), dhau 2-teev kev ntsuas hluav taws kub, nrog rau qhov kub thiab txias tsis muaj qhov kub siab tshaj li 140℃thiab kev nyab xeeb theem pa taws (AQ1), ua tau raws li qhov yuav tsum tau muaj kev nyab xeeb hluav taws kub siab tshaj plaws.
Q3: Dab tsi yog qhov kev pab cuam lub neej? A3: Design service life ≥50 years. After 300 freeze-thaw cycles and 5000 hours of UV aging testing, performance retention >95%. Cov khoom siv txhua xyoo kev laus tsawg dua lossis sib npaug li 1%, qhov tseem ceeb ua tiav tib lub neej raws li lub tsev loj.
Q4: Ua li cas lub kaw lus muab cov dej tsis zoo thiab cov dej tsis zoo? A4:Plaub- txheej tiv thaiv: 1) Nano hydrophobic txheej (hu rau lub kaum sab xis Ntau dua lossis sib npaug li 110 degree); 2) Seamless integrated tsim; 3) Siab-kev sib npaug ntawm qhov dej; 4) Intelligent vapor permeability tswj. Kev nqus dej tsawg dua lossis sib npaug li 1.0%, tiv thaiv kom tsis txhob muaj pwm thiab pwm.
Q5: Yuav siv sijhawm ntev npaum li cas? A5:Txhua pab pawg (4-6 tus neeg ua haujlwm) tuaj yeem nruab 300-500㎡ ib hnub. Piv nrog rau cov txheej txheem ib txwm siv nrog 10+ cov kauj ruam kev tsim kho, cov txheej txheem kev sib koom ua ke yuav tsum tsuas yog 3 cov kauj ruam tseem ceeb, txo cov sijhawm tag nrho ntawm qhov project los ntawm 30-50%.
Q6: Nws puas tuaj yeem hloov kho rau cov duab kos duab? A6:Yog lawm. Peb muab: 1) Custom curved nto nrog lub vojvoog loj dua lossis sib npaug li 3m; 2) Tshwj xeeb- zoo li tus qauv tsim; 3) Ntau qhov kev xaiv tiav (xim / hlau / pob zeb cuam tshuam); 4) Kev tsim qauv zoo sib xws nrog cov ntaub thaiv phab ntsa, qhov rais, thiab qhov rooj.
|
